| Section | Item | Specifications |
|---|---|---|

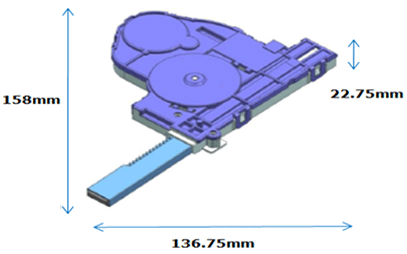

| Dimension | Exterior dimension | W158 * D136.75 * H22.75(unit:mm) |
| Product Feature | Withdrawal Distance | 80mm±3 |
| First Section Withdrawal Force(Begining 20mm) | 70N(7.15kgf)more | |
| Second Section Withdrawal Force(20~80mm) | 30N(3.06kgf)more | |
| Withdrawal Time | Within 20sec | |
| Electrical Feature | Voltage | 14.5V ~ 16.5V DC |
| Current | Max 200mA | |
| Output Switch | 20V DC / MAX 50mA | |
| Durability Operating Condition | Door Open | 3.650Cycle(2cycle/1Min) |
| Clutch Friction Furability | 1,000Cycle |
※ The easy System can be changed to meet customer product and requirement
